HVAC Commercial & Residential

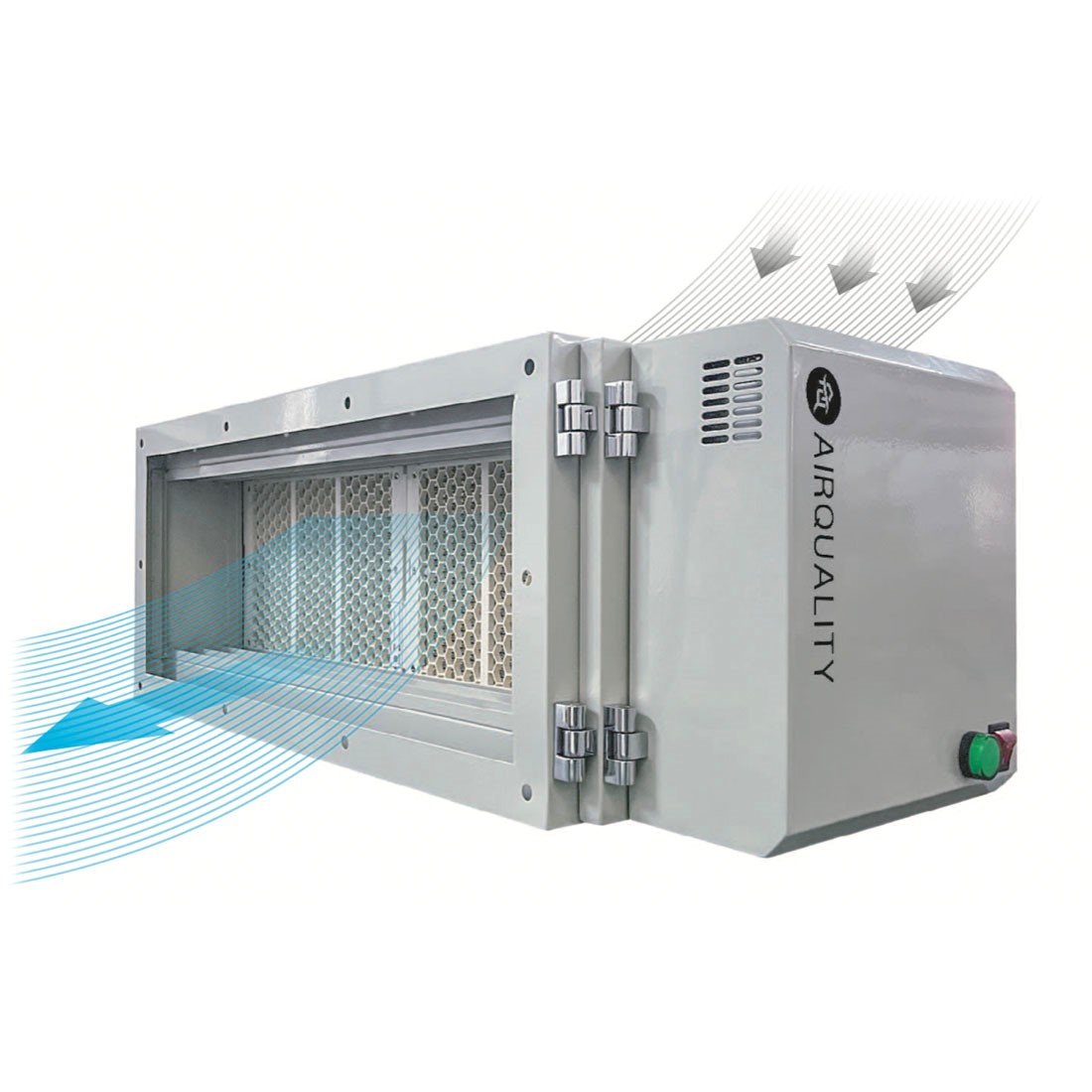

The air duct type sterilizer and deodorizer adopts plasma technology to generate high-density plasma and multiple purification factors. The purification is achieved through the design of external fan and pipeline. Multi specs modular joint design can meet the air volume demand of different places, with high deodorization efficiency. It is the top choice for the deodorization and purification of air exhaust, garbage room and sewage treatment room.

• 2 Stages Spike Ionization
• Large-Area Dust Collection Area
• High Conductivity Aluminum
• Oil Guide System
• PWM Power Board
• Tracking Resistance Technique
• Smart Power-off Technique
• Automatic Cleaning System
• Odor Removal Integration System

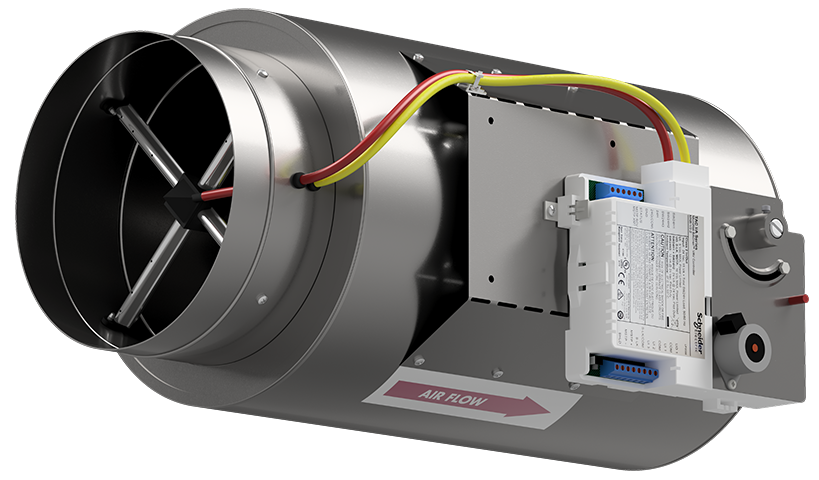

Pressure independent VAV air volume control terminals. These terminals are designed particularly for systems with space and installation restrictions and for the accurate measurement and control of air volumes courtesy of the patented air flow sensor type Flo-Cross®.

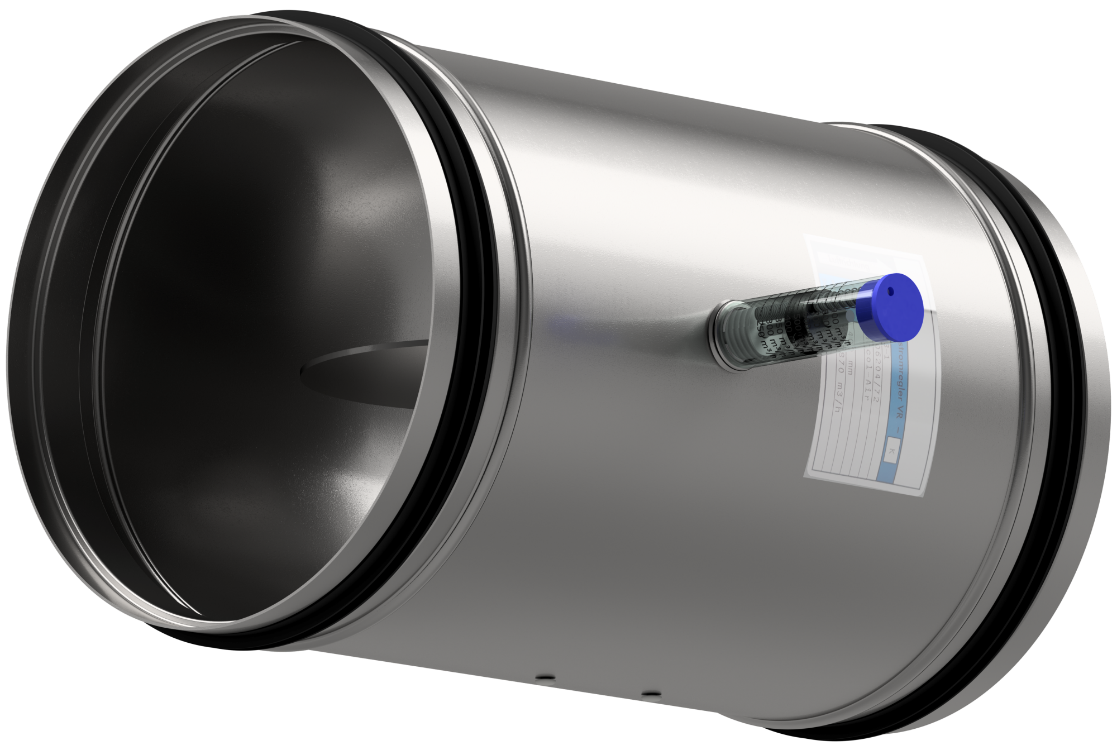

Constant volume terminals with system powered mechanical regulator, designed to keep a constant air flow, independent of the inlet static pressure without the use of a DDC CAV/VAV controller/actuator.

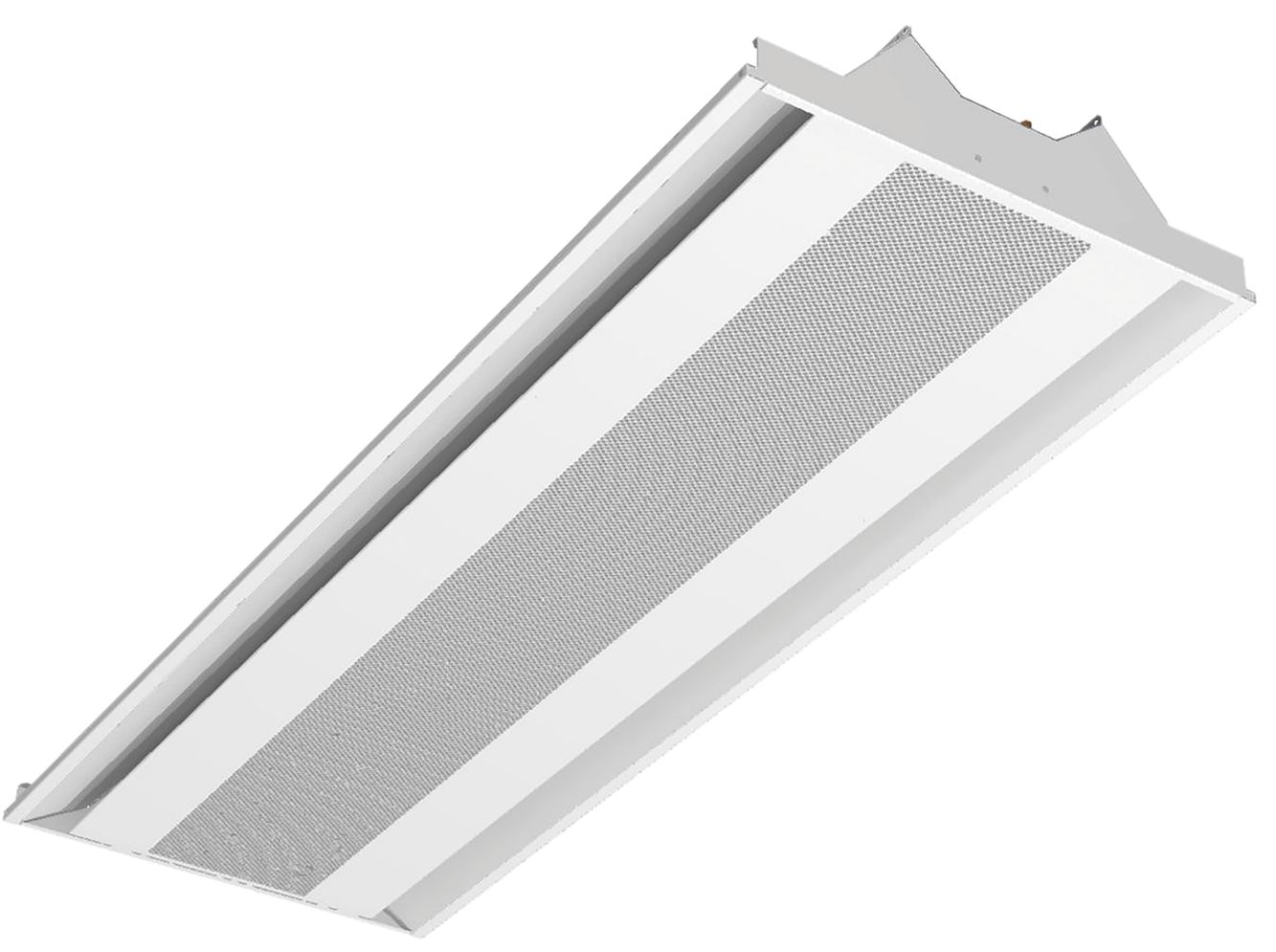

The active chilled beam AIR-FIT type has a high cooling and heating capacity and is suitable to ventilate, cool and heat (commercial) buildings.

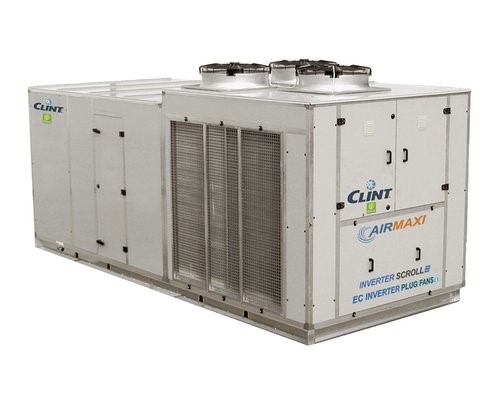

The double skin packaged Roof Top units of this series are the ideal solution for air conditioning of wide surfaces such as shopping malls and restaurants, canteens or for industrial areas. Those units feature Inverter Scroll compressor with R410A refrigerant and EC Inverter Plug-Fans. The highest efficiency at partial loads is guaranteed by the Inverter Scroll technology on compressor since its power is varied proportionally to the requested thermal load. Furthermore, the EC Inverter Plug-Fans with high energy efficiency backward blades are managed by an electronic control adjusting fans' rotational speed to adapt the air flow to the system capacity.

Equipped with extruded aluminium alloy sections and 50mm-thick sandwich panelling, these units are available in Cooling only and Reversible Heat Pump version.

The flat or pocket filters help to keep the air quality at a suitable level in order to guarantee appropriate hygiene standards.

• CAPACITY RANGE : 17 kW to 252 kW

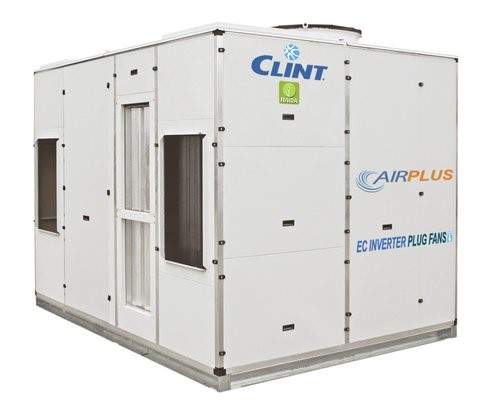

The single skin packaged Roof Top units of this series are the ideal solution for air conditioning of medium-wide surfaces such as shopping malls and restaurants, canteens or for industrial areas. These units are equipped with Scroll compressors with R410A refrigerant, and are available in Reversible Heat Pump version also with Free-Cooling with 2 or 3 dampers. It is equipped with EC Inverter Plug-Fans with high energy efficiency backward blades both for intake as well as delivery, managed by an electronic control adjusting fans' rotational speed to adapt the air flow to the system capacity. The unit can easily adapt to diverse engineering needs thanks to the possibility of selecting onsite the air flow direction, choosing among 8 positions of both intake and output air direction. The unit's structure is made of a frame with extruded aluminium profiles and prepainted panels, and features flat type filters with varying efficiency levels, maintaining high air quality and high comfort.

The unit can be equipped, as an option, with the innovative Thermodynamic Coil-Boost Heat Recovery to achieve better performance and efficiency both in cooling and heating up to 15%.

• CAPACITY RANGE : 17 kW to 171 kW

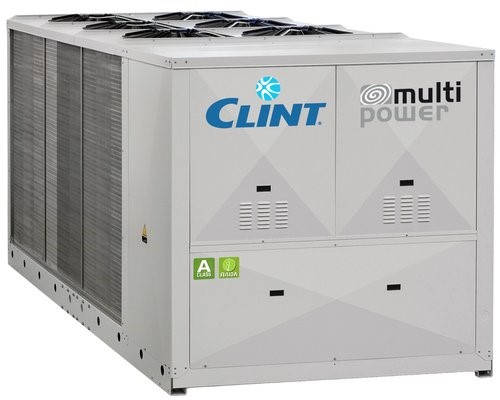

The liquid Chillers and Heat Pumps of the CHA/K 726÷36012 series, with R410A refrigerant, are designed for large-sized service sector or industrial ambients.

The units are characterized by multi-compressor design on double cooling circuit, to reach high energy performances, reduction of current at start-up, elimination of inertial tanks and excellent silent functioning. The use of components built in large series makes them highly reliable and the management of a high number of compressors allows increased life span with reduction of machine stopping risks and easier maintenance operations. A wide range of accessories, factory fitted or supplied separately, complete the outstanding versatility and functionality of the series.

Are available as an option the new EC Inverter fans with high available static pressure and efficiency.

• CAPACITY RANGE : 200 kW TO 1062 kW

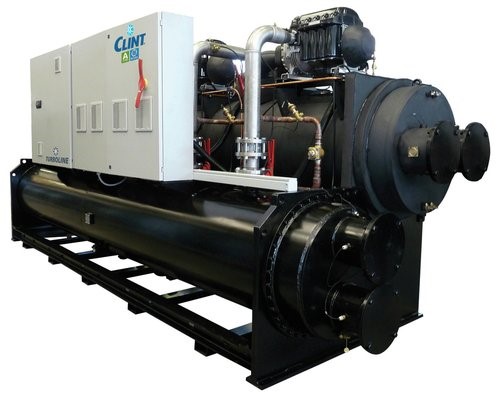

The innovative CWW/TTY 1601-1÷14406-1 TURBOLINE units for cooling tower operation, featuring A CLASS energy efficiency, are designed to provide an effective solution to highly selective system needs. Efficiency at partial loads, low breakaway starting current, low levels of operational noise, reduced weight and the specific design and handling every manufacturing aspect, make the series the top of the range.

Using TURBOCOR dynamic partial-load oil-free magnetic levitation compressors, managed by the TURBOSOFT self-adaptive electronic control and flooded shell and tube evaporators, provide high energy performance, with unbeatable SEER values, with minimum water content, and an excellent silent functioning. Compared to traditional Screw compressor units, units have low operational costs during their entire use, with a savings that can even reach 50%.

• CAPACITY RANGE : 57 kW TO 3912 kW

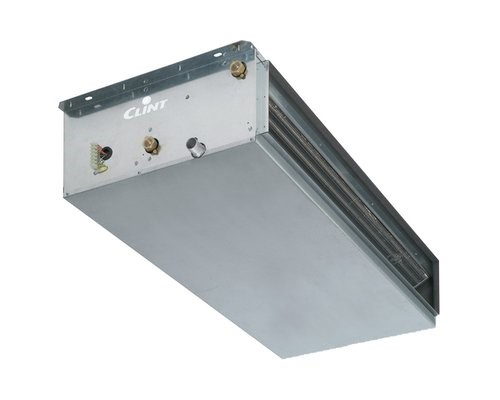

The VXI 123-614 water terminals are designed to meet all installation requirements, whether vertical or horizontal recessed, with front, rear or bottom intake, in domestic or tertiary environments such as offices, hotels, restaurants, gyms and shops.

When part of a hydronic system equipped with a Liquid Chiller, the unit generates cool air silently and with instantaneous reaction. While, during the winter, if combined with a thermal system, it provides warm air, making possible to meet home or business heating needs. An easily removable and cleanable air filter absorbs and retains dust in suspension keeping the air quality at a suitable level and allowing the execution of continuous cleaning cycles, which are particularly important to guarantee suitable hygiene standards, especially in highly frequented rooms. The product range is completed with a wide range of accessories, also for 4-Pipe systems, which includes a complete control panel collection, that can be installed on-board or in the room.

Units are available both with 6-Speed or EC Inverter fans. The units equipped with EC Inverter motor modulate the air flow, adapting the performances instant to instant to the actual needs of the room to be conditioned, assuring a total comfort with greater energy savings.

• CAPACITY RANGE : 1.4 kW TO 22 kW

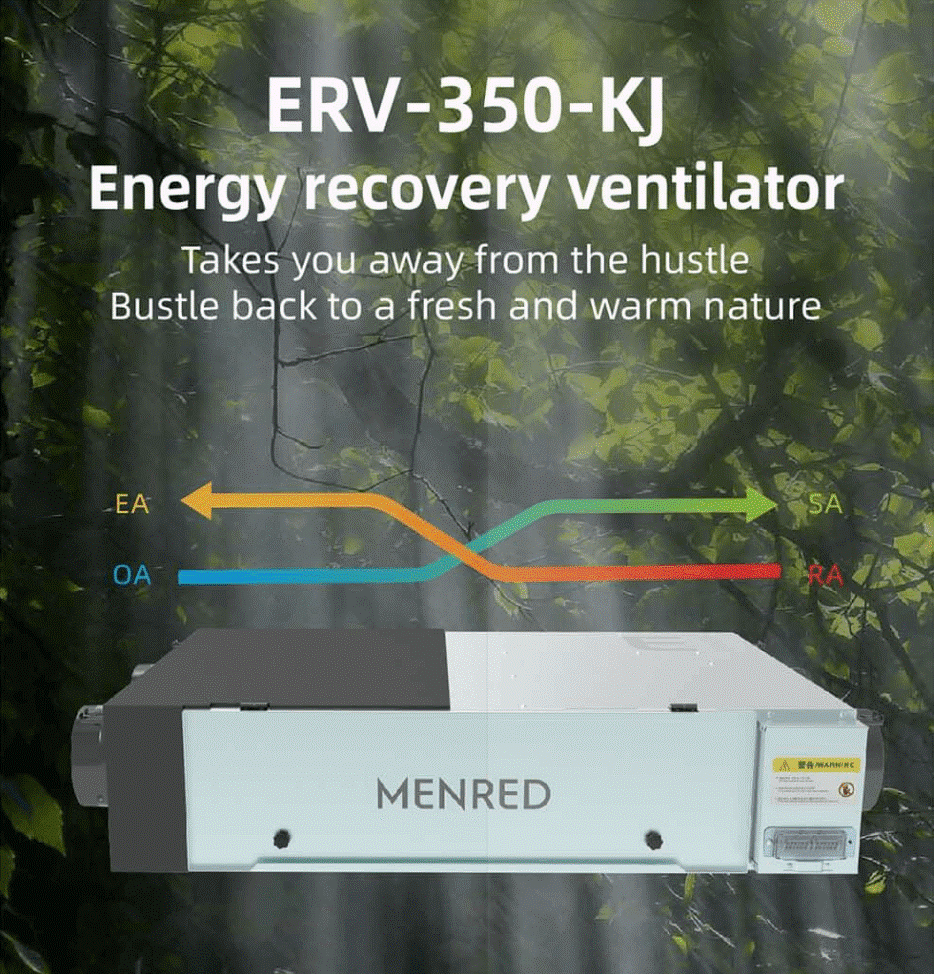

Discover the cutting-edge MENRED ERV350KJ Energy Recovery Ventilator, a ceiling-mounted marvel designed to revolutionize indoor air quality management. Boasting an advanced ERV enthalpic exchange core, this unit achieves an exceptional energy recovery efficiency rate of up to 74.5%, ensuring optimal performance and energy savings.

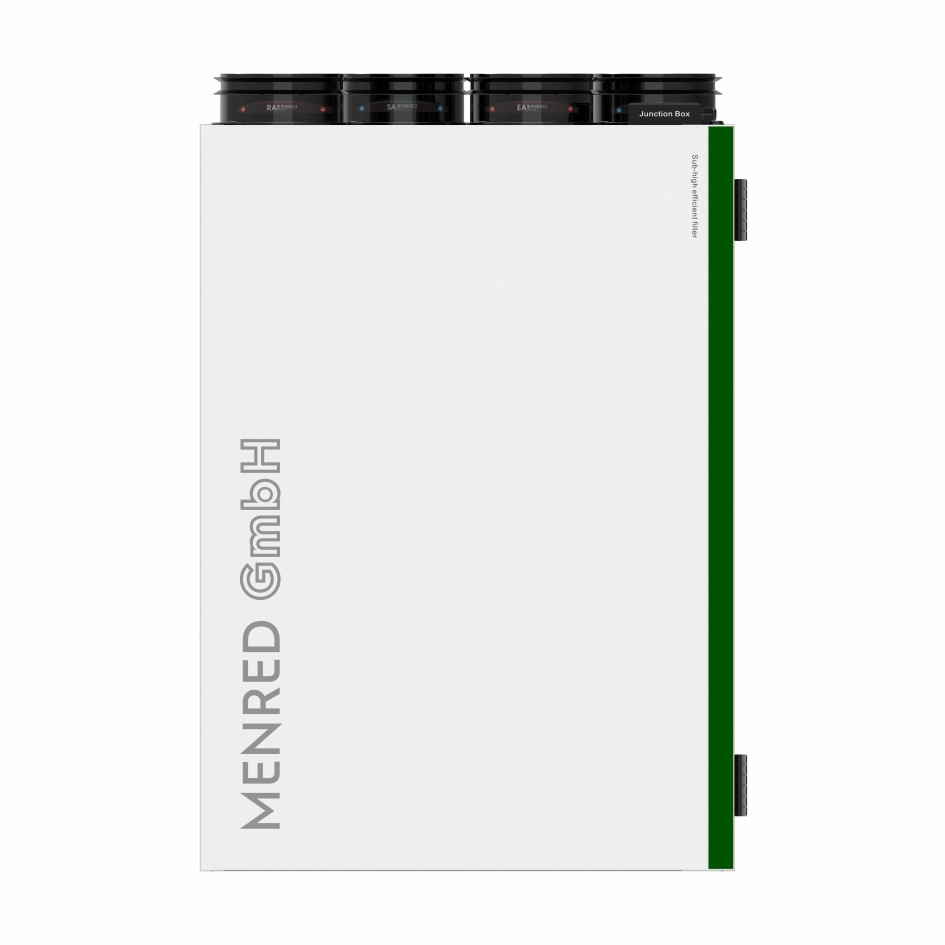

The Ultimate Solution for Clean and Comfortable Indoor Air：Introducing the MENRED G7 Wall-Mounted Energy Recovery Ventilator (ERV), a revolutionary solution designed to enhance your indoor air quality and comfort. With cutting-edge features and innovative technology, the MENRED ERV sets a new standard for residential ventilation systems. The MENRED ERV(G7) achieves effective energy recovery through its outstanding high heat and humidity exchange performance, minimizing energy consumption to the maximum extent. Its advanced enthalpy exchanger can transfer heat and humidity between indoor and outdoor environments, keeping your home warm in winter and cool in summer, thus saving on energy costs. Moreover, the MENRED ERV filters pollutants and particles from the air, providing fresh and healthy indoor air.

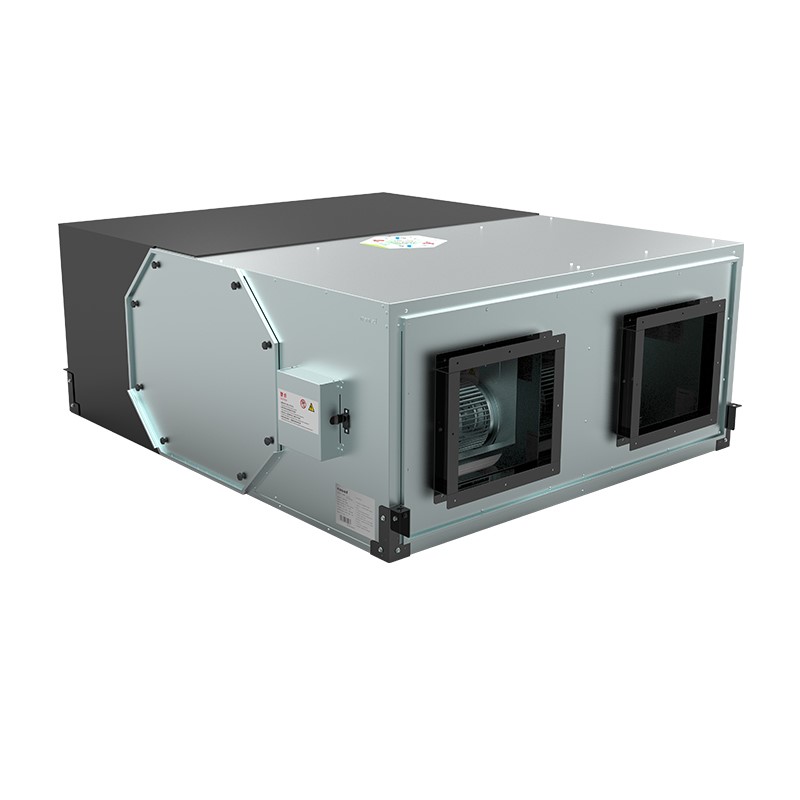

MENRED HRVs are suitable for applications in a wide range of commercial, institutional, and educational buildings, regardless of their size and location. Our HRVs can support air volumes up to 3000 m³/h, and provide exceptional versatility and energy efficiency benefits. MENRED HRVs are the perfect choice for building owners and facility managers who prioritize energy efficiency, reliability, and indoor air quality.

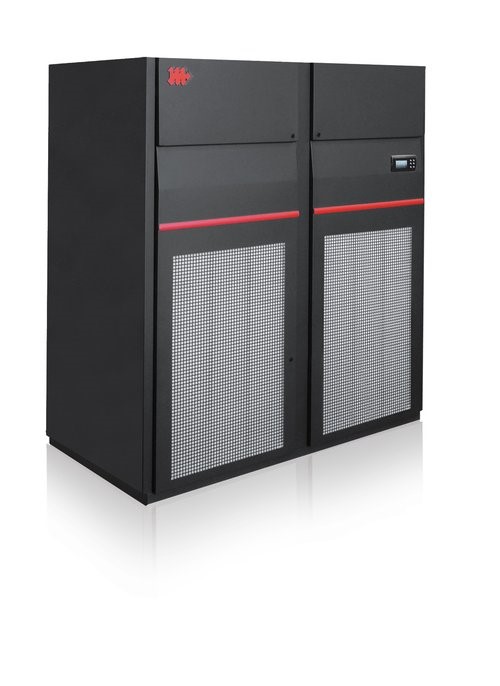

High efficiency air cooled direct expansion units. The Inverter Scroll compressor and the EC Inverter Plug-Fans vary their delivered power and absorbed power depending on the real requested thermal load. Up to 88% difference between minimum and maximum absorbed power is reachable.

• The XIP range is equipped with EC Inverter Plug-Fans; High Head fans are available as accessories.
• The range features electronic expansion valve already included.
• The XIP range is available in two air discharge versions: XIPT with top air discharge and XIPB with bottom air discharge.
• Unit supervision is developed by means of Modbus RTU protocol over RS485 serial interface as standard configuration. Other communication protocols and interfaces are available as option.
• The units are suitable for operation at a high outdoor air temperature (up to 52 C) with the correct combination with the XT remote condensers.
• CAPACITY RANGE : 17 kW to 136 Kw

New generation Chilled Water units characterized by the combination of two parts: the upper cooling module which includes an high performing coil, filters, electrical box, modulating valve and the newest EC Inverter Plug-Fans are housed in a dedicated module optimized for minimum air pressure drops and reduced electrical absorbed power. The fan module, normally configured "fully open" for installation under the raised floor, can be provided with panels for installation above the raised floor.

• Unit supervision is developed by means of Modbus RTU protocol over RS485 serial interface as standard configuration. Other communication protocols and interfaces are available as an option.
• These units are designed to operate with high water temperature (14/20 °C) despite being possible, with a dedicated option, to operate with conventional water temperature (7/12 °C).
• CAPACITY RANGE : 8.6 kW to 282 KW

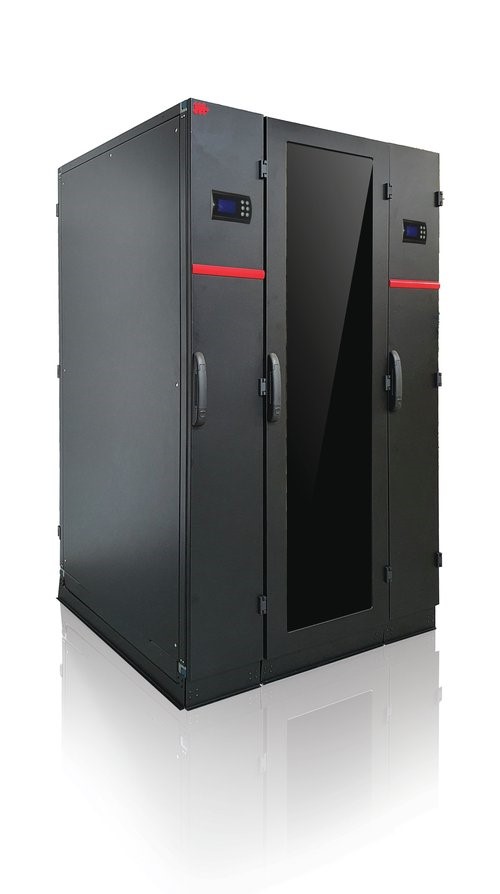

It is also possible to achieve a fully redundant system XIPR-ER by coupling the rack with two direct expansion cooling modules. These systems are flexible, easy to be implemented and they are the perfect solution for different applications such as micro data centers, high density servers, EDGE computing, IOT applications, 5G devices. The two modules can operate in a Master/Slave configuration with one unit working and one unit in stand-by with rotation of the stand-by unit on time basis.

• CAPACITY RANGE : 11 kW to 43 Kw

It is also possible to achieve a fully redundant system WOPR-ER by coupling the rack with two chilled water cooling modules. These systems are flexible, easy to be implemented and they are the perfect solution for different applications such as micro data centers, high density servers, EDGE computing, IOT applications, 5G devices. The two modules can operate in a Master/Slave configuration with one unit working and one unit in stand-by with rotation of the stand-by unit on time basis.

• CAPACITY RANGE : 15 kW to 39 KW

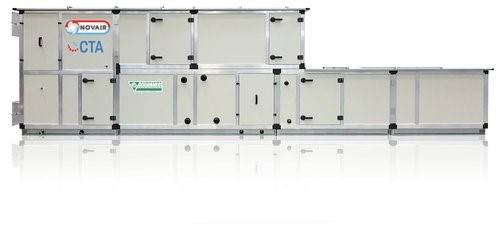

Any design is possible with CTA: one or two levels, side by side, with special dimensions or shapes, or with fully independent sections for air inlet / recirculation.

• 36 customizable models
• A wide choice of sections, with several technologies and performance levels, is available. Ventilation, Heat Recovery, Cooling/Heating, Filtration, Humidification, Silencing.
• Units are available with different power supply, voltage and frequency (50/60 Hz).
• CAPACITY RANGE : 1.000 to 112.000 m3/h.
