INFINAIR

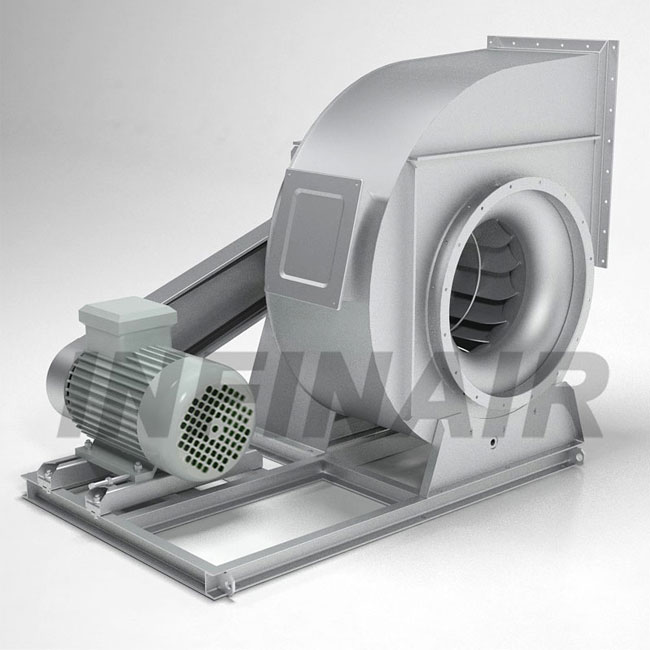

Backward Curved SWSI Centrifugal Fan - Wheel Type L - YFBCSL
- Airflow Range: 1,000～380,000 m³/h (588~223529 CFM)
- Static Pressure Range: 300～4,100 Pa (1.2~16.46 in.WG.)
- Operating Temperature: -20～450 ℃
- Drive Types: Direct/ Belt/ Coupling drive
- Mounting Type: Base mounted
- Applications: General air supply and exhaust/ Explosion-proof air supply and exhaust / Smoke removal

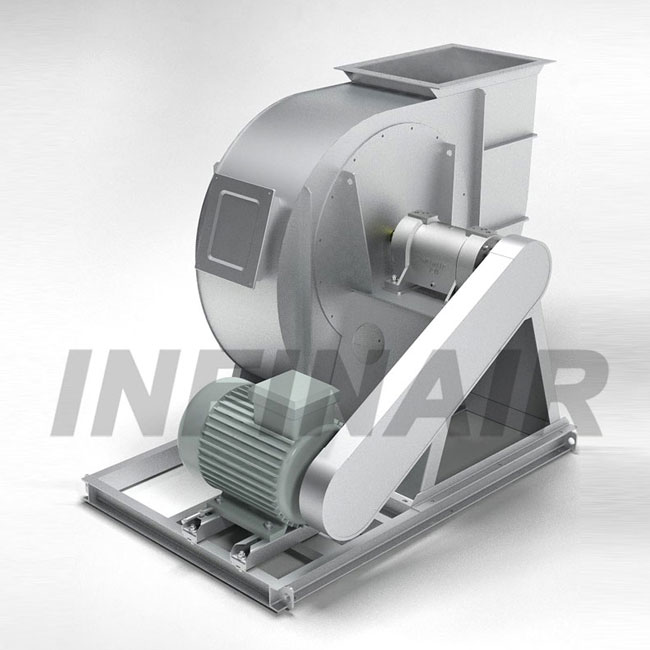

Backward Curved SWSI Centrifugal Fan - Wheel Type K - YFBCSK
- Airflow Range: 1,000 ~ 220,000 m³/h (588 ~ 129412 CFM)
- Total Pressure Range: 300 ~ 5,400 Pa (1.2 ~ 21.68 in.WG.)
- Operating Temperature: -20～450 ℃
- Drive Type: Direct/ Belt/ Axial
- Installation Methods: Base Mount
- Applications: Industrial/ Explosion Resistant

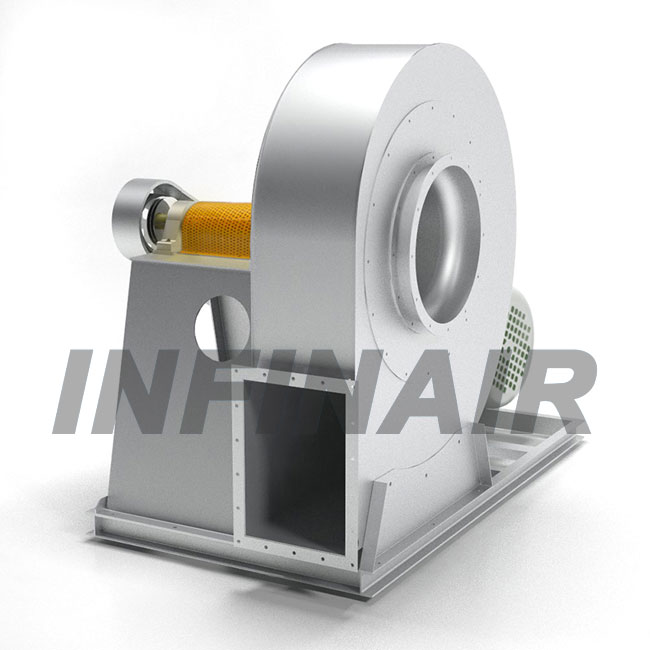

Backward Curved SWSI Centrifugal Fan - Wheel Type O - YFBCSO
- Airflow Range: 1,500 ~ 201,000 m³/h (882 ~ 118235 CFM)
- Total Pressure Range: 475～10,900 Pa (1.91～43.76 in.WG.)
- Operating Temperature: -20 ~ 450 ℃
- Drive Type: Direct/ Belt/ Axial
- Installation Methods: Base Mount
- Applications: Industrial/ Explosion Resistant

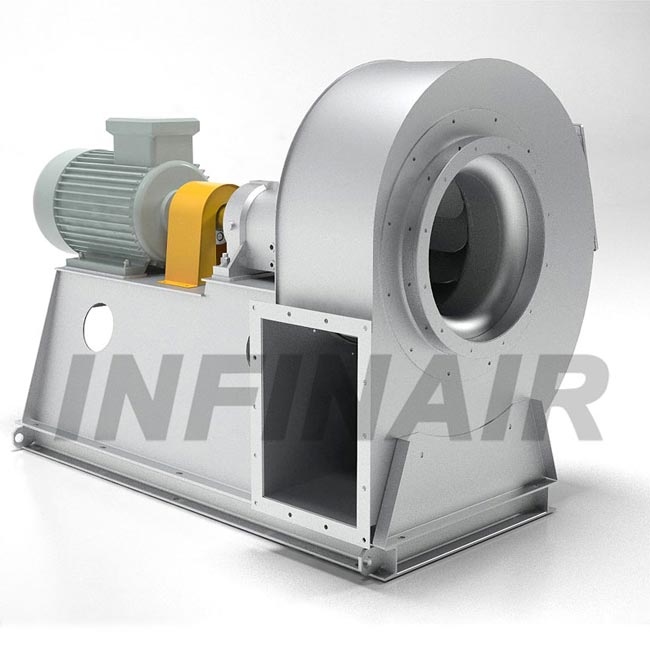

Backward Curved SWSI Centrifugal Fan - Wheel Type R - YFBCSR
- Airflow Range: 1,000 ~ 266,000 m³/h (588~156471 CFM)
- Total Pressure Range: 500 ~ 7,400 Pa (2.01~29.71 in.WG.)
- Operating Temperature: -20 ~ 450 ℃
- Drive Configurations: Direct/ Belt/ Axial
- Installation Methods: Base Mount
- Applications: Industrial/ Explosion Resistant

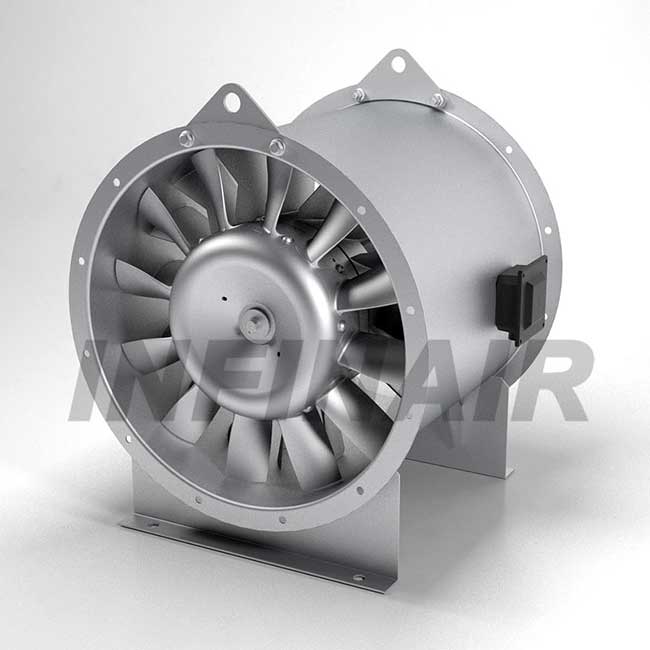

High Efficient Inline Vane Axial Fan Impeller Type M - YFIAM
- Airflow Range: 4,000～230,000 m³/h (2,353~135,294 CFM)
- Total Pressure Range: 30～2,000 Pa (0.12~8.03 in.WG.)
- Drive Type: Direct drive
- Mounting Types: Base mounted/ Ceiling hung
- Applications: General air supply and exhaust/ Explosion-proof air supply and exhaust / Positive pressure air supply/ Smoke removal
